Wireless External TPMS 4 Sensor Pure Bluetooth 4.0 Type High - Speed Transmission
Product information:
| Specifications |
| Working Voltage | 3V |
| Operating Current | 540uA |
| Working Temperature | -30℃-80℃ |
| Tire Pressure Detection Range | 100-900kpa (±10kpa) |
| Tire Temperature Detection Range | -30℃-80℃ |
| Accuracy Of Tire Temperature | ±3℃ |
| Bluetooth Working Frequency | BLE4.0 2.4GHz |
| Bluetooth Transmit Power | 0dBm MAX |
| Display Mode | APP (TPMS) for install (support Android 4.3+ & IOS 7.1+) |
| Response Time | ≤6s |
| Working humidity | 95% MAX |
| Waterproof Grade | IP67 |
| Battery | 120mAh CR1632 |
| Battery Life | 400 days or above |
| Weight | 9.6g ±1g |
| Features |
| 1) This system can monitor real-time temperature and pressure information of the tire, and warning at abnormal time 2) Bluetooth 4.0 high-speed transmission with ultra-low-power 3) APP real-time monitoring 4) Strong signal which support long-wheelbase vehicles 5) Suitable for IOS / Android phones (Android 4.3+ & IOS 7.1+) |

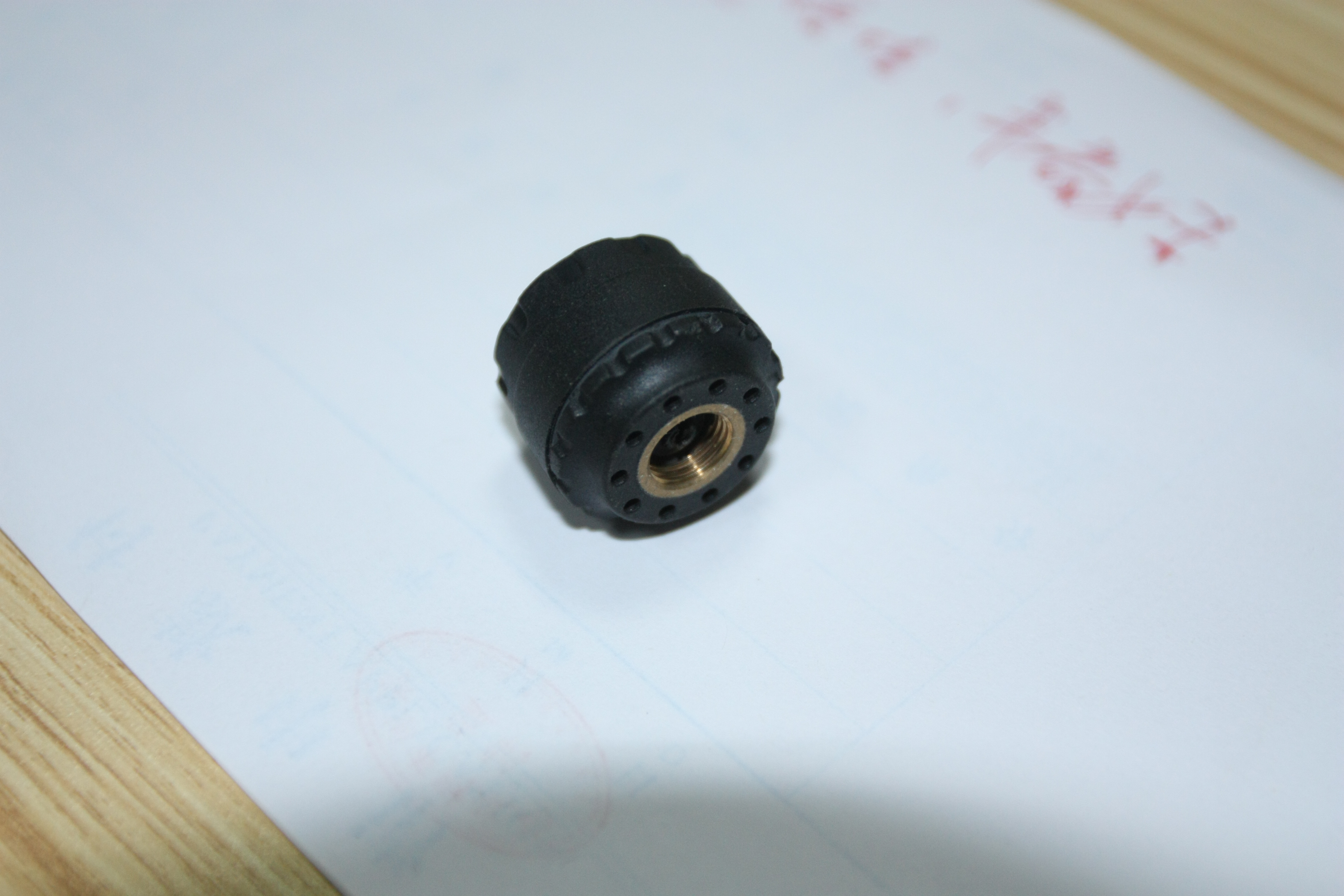

Product Show:
Extend your tyre life by reducing unnecessary tyre wear
Under inflated tyres run hotter than correctly inflated tyres. It’s a simple but often overlooked area. Now you don’t need to remember to check your tyre pressures regularly. You can easily observe the tyre pressure readings on each wheel with a centrally located monitoring console. Heading out on the road with incorrectly inflated tyres will cost you more in the long run than purchasing the monitoring system.
Tire Pressure Monitor System (TPMS) Functions:
| 1) Air Leakage Monitoring: alarm the leakage and reduce risk factors 2) Prevent tire burst: monitor the inside of the tyres and gives off alarm properly.It will help to avoid any traffic accident caused by tyre blow-out 3) Avoid Vehicle Deviation: when the tire pressure is in consistent, it will lead to an imbalance and caused vehicle deviation 4) Reduce the tire wearing loss and extend service life: The friction force increases with the increasing contact area between the wheel and the ground when low pressure of tire. 5) Reducing fuel consumption: when tire pressure is lower than standard value 30%, oil consumption straight up 10% |
 |
Automotive center stack & PTZ control both support the tire pressure monitoring
Step 1: Install the APP “TPMS”
Step 2: Use the APP, Bluetooth pairing with the sensor, easy monitor pressure and temperature of tire
Working Environment:
>>Why the traffic the accident happen?
1.Road: terrible road condition, without the clear road signs
2.Artificial aspect: driver's wrong operation or violate the traffic rules; the pedestrian jaywalk.
3.Vehicle aspect: low tire pressure, high tire temperature, blow-out, brakes failed.
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note:We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof,shockproof,temperature resistance,
humidity resistance,high definition.
competitive advantage
1. Stable quality (CE FCC ROHS)
2. Most competitive price
3. On time delivery
4. Good aftersales service
5. All products must test one by one wartproof resistance and high/low temperature resistance
6. Warranty:16months
7.OEM,ODM welcome
